PS

Punching Shear Resistor

$0.00

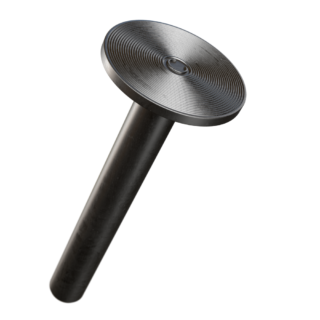

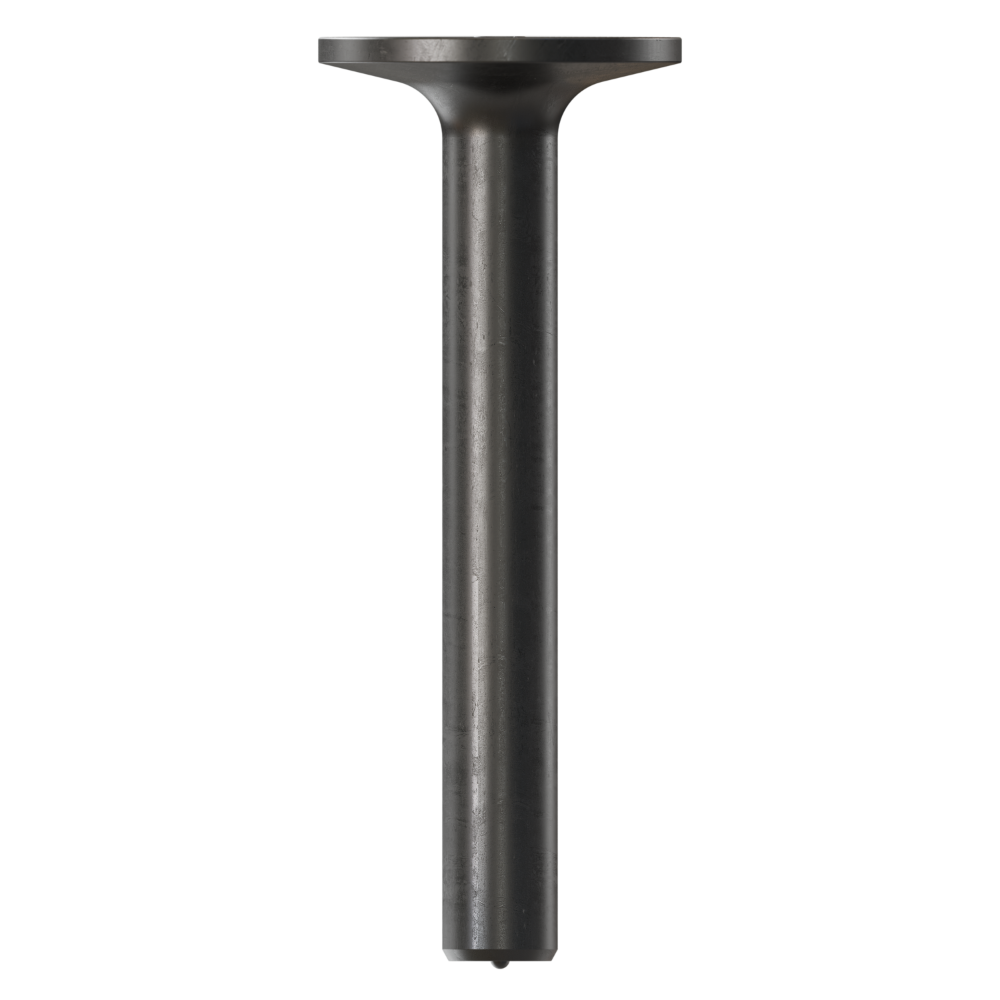

COX INDUSTRIES PSR STUDS are designed for welding to flat strip steel to reduce punching shear stress. When ordering specify overall height of rails and diameter of stud.  All orders for studs include required ferrules.

"*" indicates required fields

Category:

MATERIAL

Low carbon steel, ASTM A29/A108, 1010-1020

LENGTH

Length is before weld. Stud diameters 1/2" and below will be approximately 1/8" shorter after welding and studs 5/8" and larger will be approximately 3/16" shorter after welding. Maximum length available for cold headed product is 10-7/8". Prices on hot formed studs over 10-3/16" available upon request.

FLUX

COX INDUSTRIES PSR Studs are solid fluxed.
PRODUCT SPEC SHEET

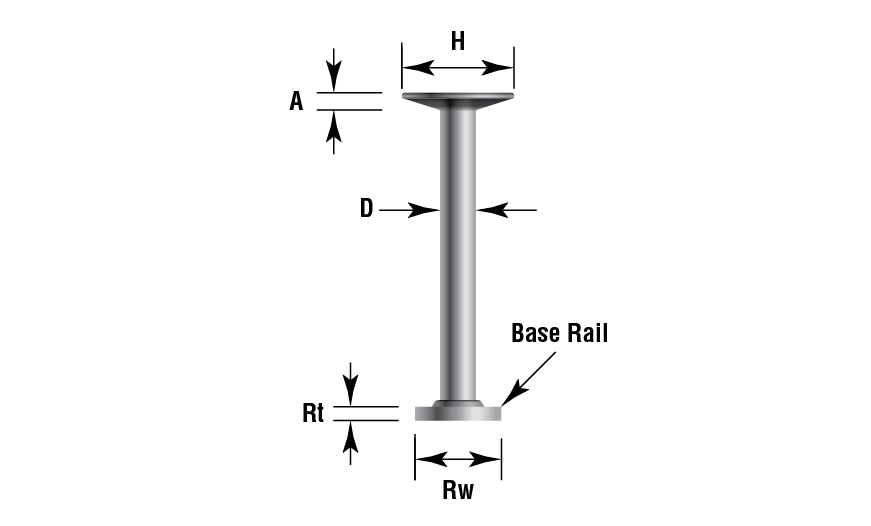

STUD SPECIFICATIONS

D A H HA/SA Base Rail
Rt Rw
 3/8 0.210 1.190 10.100   3/16 1
 1/2 0.280 1.580 10.000   1/4 1–1/4
 5/8 0.350 1.980 10.000   5/16 1–3/4
 3/4 0.420 2.370 10.000   3/8 2

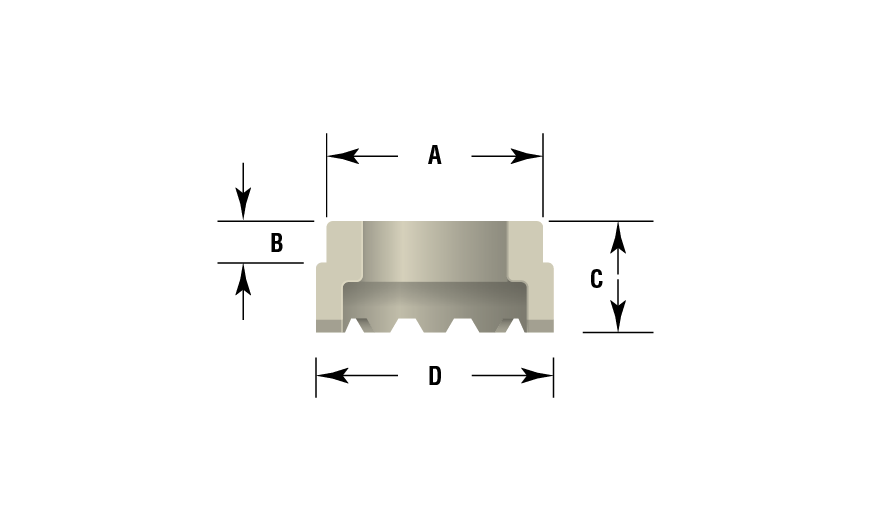

FERRULE SPECIFICATIONS

FERRULE DIMENSIONS
NO. A D B C
38FER .505″ .640″ .150″ .390″
12FER .650″ .795″ .180″ .445″
58FER .785″ 1.030″ .185″ .525″
34FER 1.030″ 1.235″ .191″ .656″



Mechanical Properties

Type B
Tensile Strength 65,000 psi min.
Yield Strength 51,000 psi min.
Elongation (% in 2″) 20% min.
Elongation (% in 5x dia) 15% min.
Reduction of Area 50% min

Type B studs shall be studs that are headed, bent, or of other configuration in 3/8” [10 mm], 1/2” [12 mm], 5/8” [16 mm], 3/4″ [20 mm], 7/8” [22 mm], and 1” [25 mm] diameter that are used as an essential component in composite beam design and concrete anchorage design.
