COX INDUSTRIES NT STUDS are designed for a variety of applications.  They are used as tong holding of billets in forging applications, refractory anchorage and boiler tube applications.  They are also used as axles, locator pins, pivots points, stops and spacers.  Diameters are available from 3/16″ through 1″.

All orders for studs include required ferrules.

"*" indicates required fields

If you can't find the size you are looking choose Custom and define your requirements
SKU: N/A Category:

MATERIAL

Low carbon steel ASTM A29/A108 Grades 1010-1020. Weldable stainless steels are available (except Type 303) with Type 302 being the most common.

LENGTH

Studs can be produced in any length above the standard minimum (L). Length is listed before weld. Stud diameters 1/2" and below will be approximately 1/8" shorter after welding, 5/8” through 7/8" will be approximately 3/16" shorter after welding and 1" studs will be approximately 1/4" shorter after welding.

PLATING

Plating is used to increase a stud's corrosion resistance. Unless specified at time of order, all Cox studs will be supplied plain. Plating options include copper, nickel, zinc and zinc dichromat. Information on other plating materials available upon request.

ANNEALING

Upon request, stud ductility can be increased by annealing to 75 Rockwell B for low carbon steel and 90 Rockwell B for stainless steel.

FERRULES

All orders for studs include required ferrules for welding. Please specify when ordering what type of ferrule is required for your application.

FLUX

COX INDUSTRIES studs 1/4" and over are solid fluxed.
PRODUCT SPEC SHEET

STUD SPECIFICATIONS

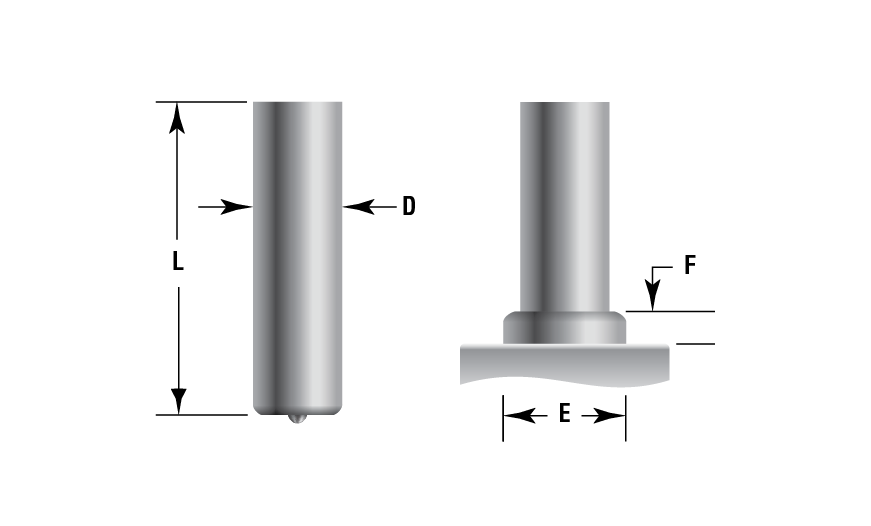

D Min L. FILLET DIMENSION
E F
3/16 25/32 9/32 3/32
1/4 25/32 23/64 7/64
5/16 25/32 7/16 7/64
3/8 25/32 1/2 1/8
7/16 25/32 19/32 9/64
1/2 13/16 11/16 3/16
5/8 31/32 7/8 1/4
3/4 1-15/64 1-1/16 5/16
7/8 1-1/2 1-1/8 11/32
1 1-41/64 1-3/8 3/8

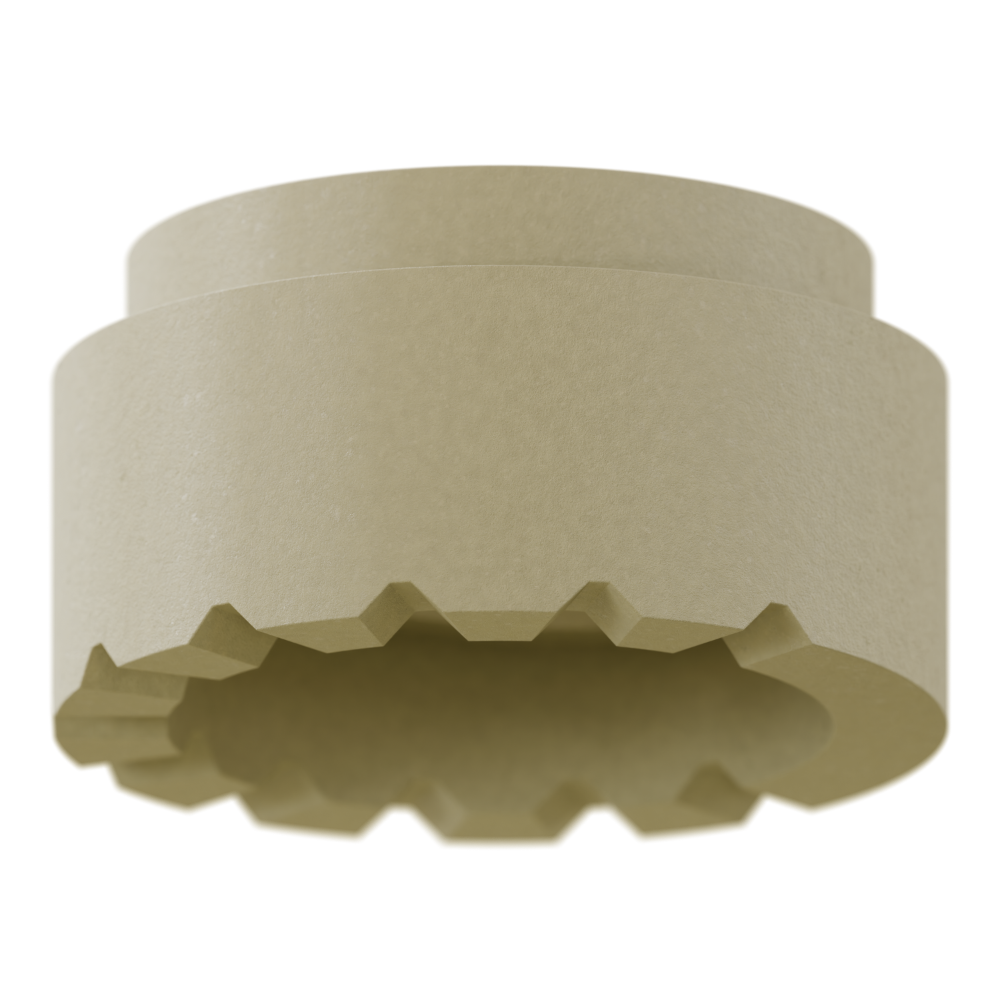

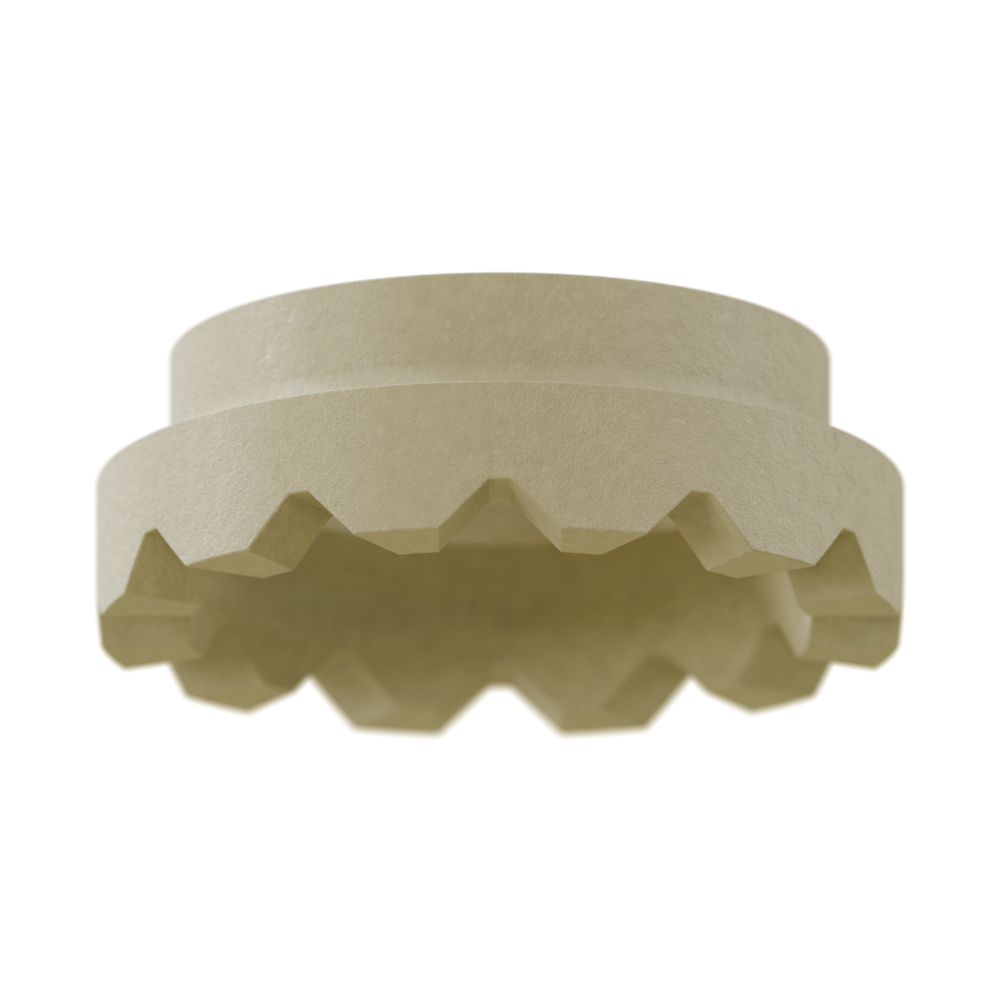

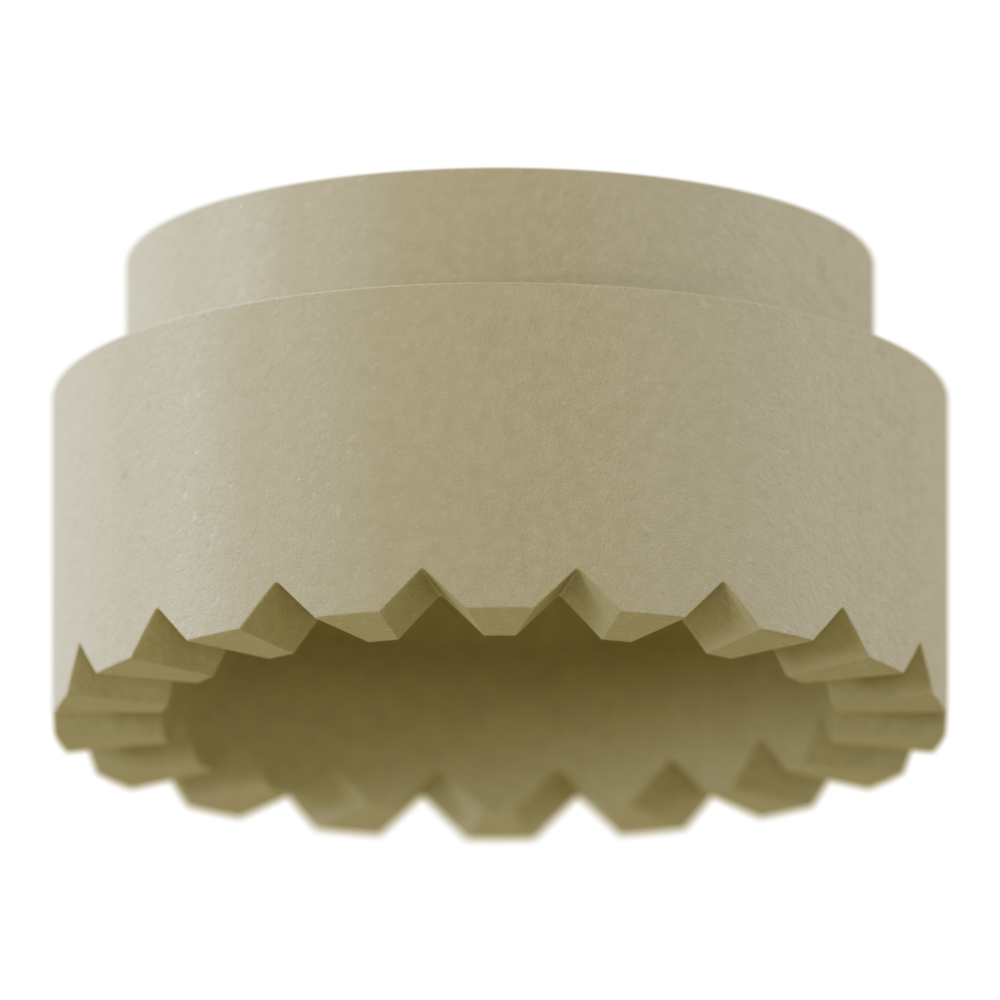

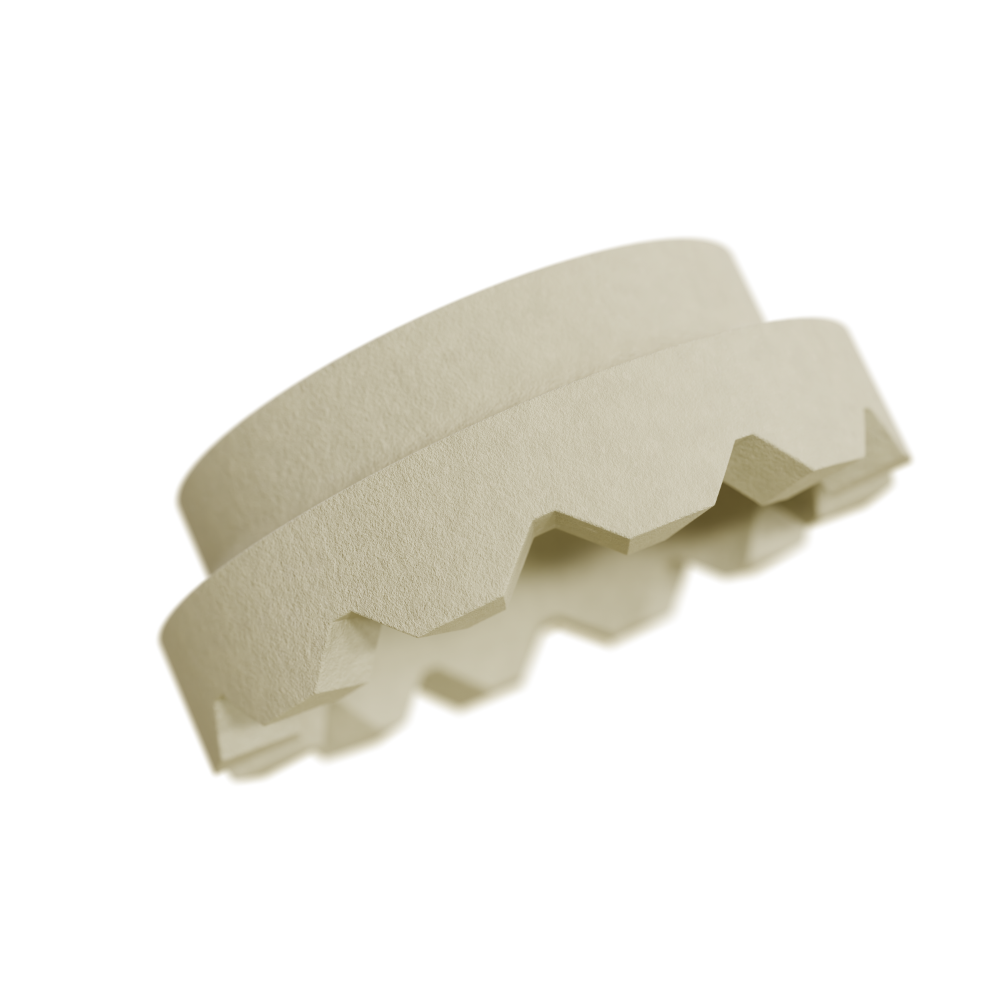

FERRULE SPECIFICATIONS

FERRULE DIMENSIONS
A D B C
31FER 0.305 0.390 0.240 0.390
14FER 0.380 0.455 0.250 0.400
51FER 0.445 0.578 0.240 0.390
38FER 0.505 0.640 0.240 0.390
71FER 0.585 0.703 0.240 0.422
12FER 0.650 0.795 0.265 0.445
58FER 0.785 1.030 0.340 0.525
34FER 1.030 1.235 0.465 0.656
78FER 1.210 1.430 0.520 0.715
01FER 1.406 1.620 0.605 0.800



Mechanical Properties (as cold drawn)

Type A
Tensile Strength 61,000 psi min.
Yield Strength 49,000 psi min.
Elongation (% in 2″) 17% min.
Elongation (% in 5x dia) 14% min.
Reduction of Area 50% min

Type A studs shall be general purpose of any type and size used for purposes other than shear transfer in composite beam design and construction.
