DB

Deformed Bar Anchor

$0.00

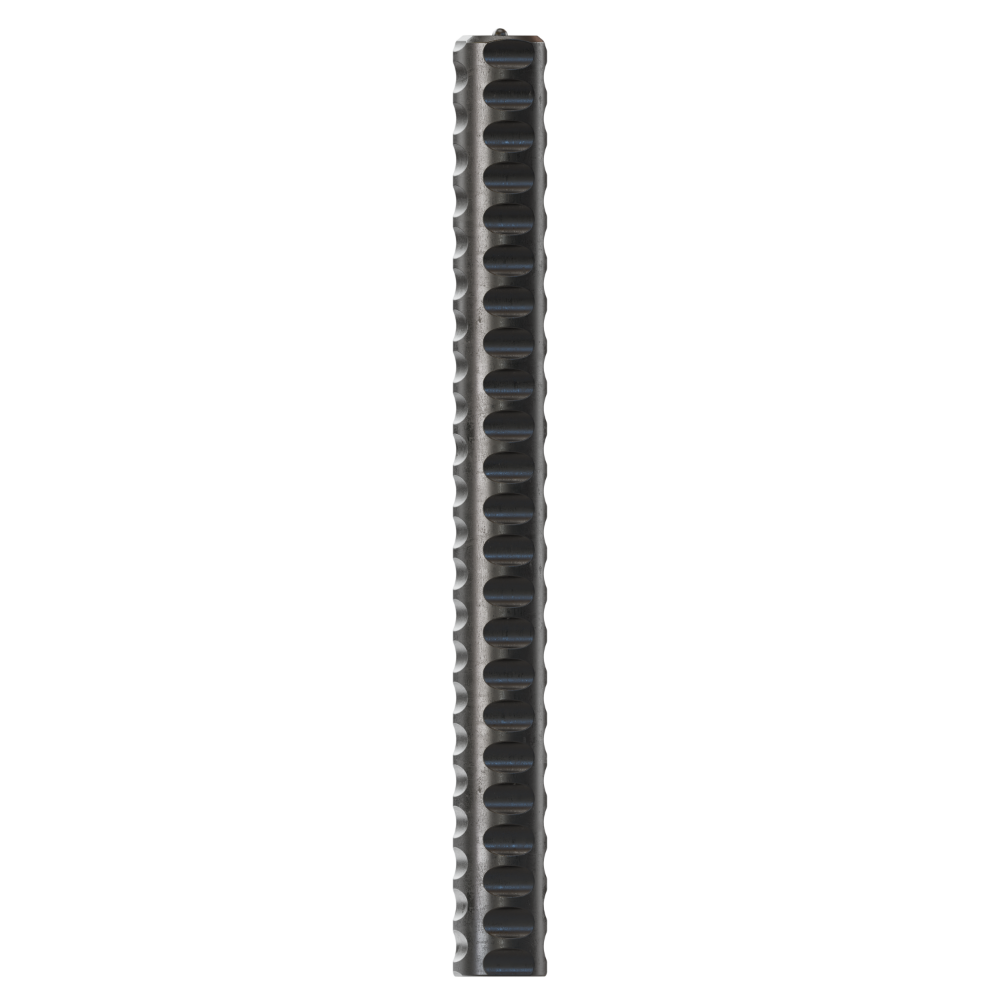

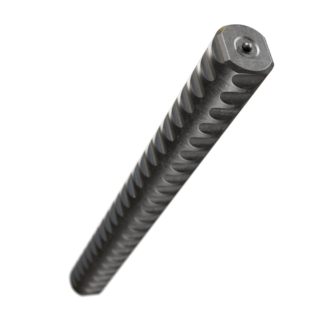

DEFORMED BAR ANCHORS are designed for weld and bearing plates in concrete connections.  They can be welded to flat surfaces or welding to the fillet or on the heel of angles. All orders for studs include the required ferrules for your application. All COX INDUSTRIES headed anchors meet AWS and CSA W59 specifications. Test reports available on request.

Category:

MATERIAL

Low Carbon Steel ASTM: A-496 / A-1064.

LENGTH

Length of stud is before weld. Stud diameters 1/2" and below will be approximately 1/8" shorter after welding and the 5/8" - 3/4" will be approximately 3/16" shorter after welding.

STAINLESS STEEL

COX INDUSTRIES Deformed Bar Anchors are available in 300 series stainless steel.

SPECIALS

Any length of deformed anchors is available upon request.

*Weights are approximate and will vary with different heats of steel.
PRODUCT SPEC SHEET

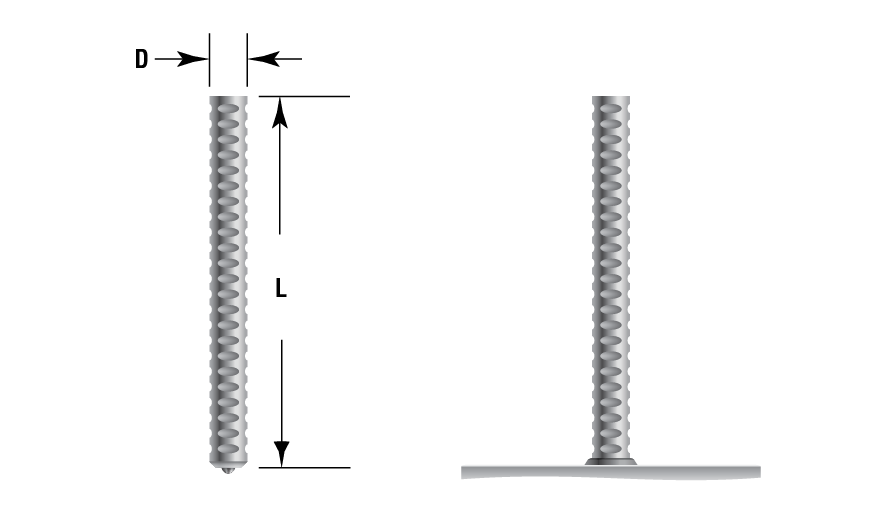

STUD SPECIFICATIONS

 D x LENGTH PART NO. LBS/M *
3/8 X 6-1/8 DB386 180
3/8 X 10-1/8 DB3810 300
3/8 X 12-1/8 DB3812 360
3/8 X 18-1/8 DB3818 520
3/8 X 24-1/8 DB3824 720
3/8 X 36-1/8 DB3836 1035
1/2 X 5-1/8 DB125 269
1/2 X 10-1/8 DB1210 537
1/2 X 12-1/8 DB1212 640
1/2 X 18-1/8 DB1218 960
1/2 X 24-1/8 DB1224 1280
1/2 X 30-1/8 DB1230 1650
1/2 X 36-1/8 DB1236 1920
5/8 X 12-3/16 DB5812 1000
5/8 X 18-3/16 DB5818 1500
5/8 X 24-3/16 DB5824 2000
5/8 X 30-3/16 DB5830 2500
5/8 X 36-3/16 DB5836 3000
3/4 X 12-3/16 DB3412 1486
3/4 X 18-3/16 DB3418 2210
3/4 X 24-3/16 DB3424 2880
3/4 X 30-3/16 DB3430 3625
3/4 X 36-3/16 DB3436 4400

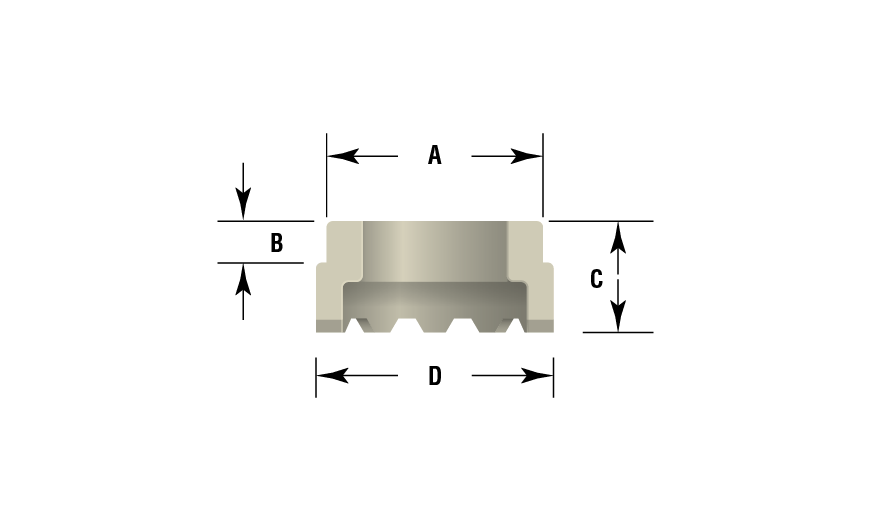

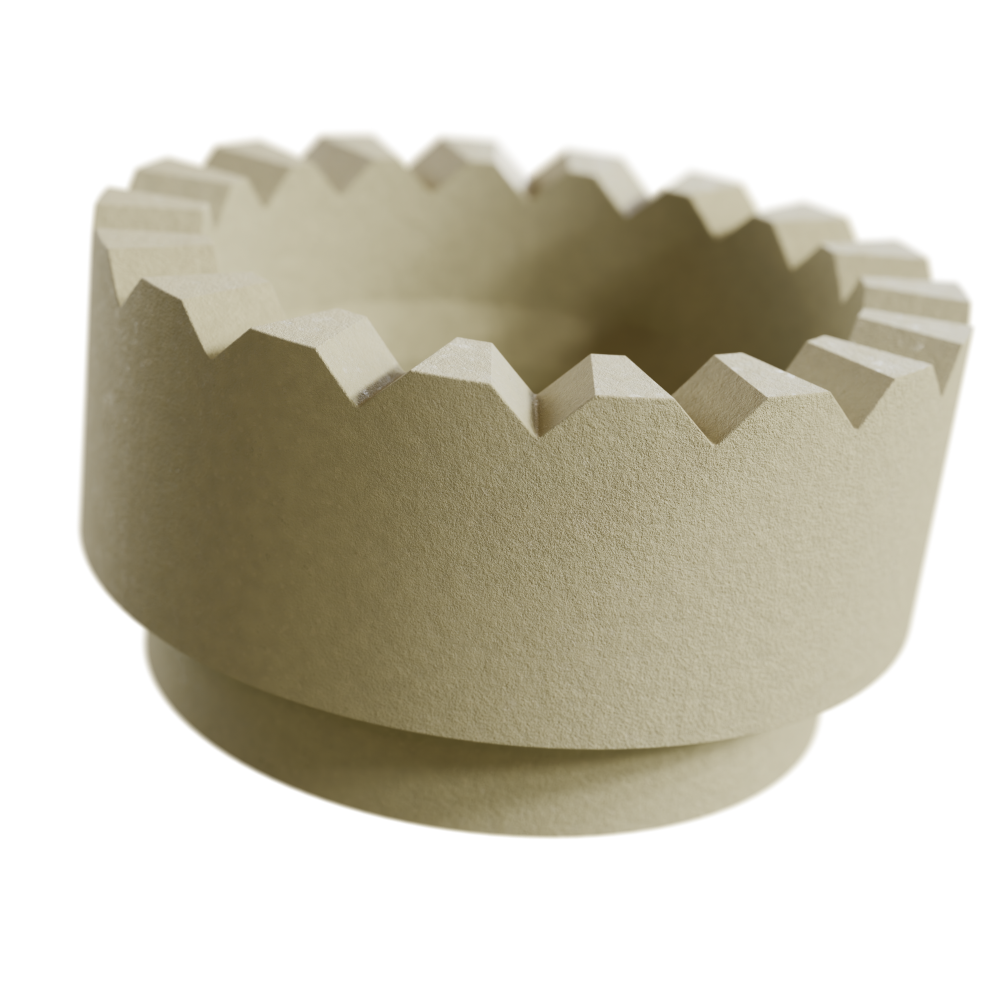

FERRULE SPECIFICATIONS

PART NO. A D B C
38FER 0.505″ 0.455″ 0.150″ 0.390″
12FER 0.650″ 0.640″ 0.180″ 0.445″
58FER 0.785″ 1.030″ 0.185″ 0.525″
34FER 1.030″ 1.235″ 0.191″ 0.656″

MECHANICAL PROPERTIES

Type C
Tensile Strength 80,000 psi min.
Yield Strength 70,000 psi min.

Type C studs shall be cold-worked deformed steel bars manufactured in conformance with specification ASTM A496/A1064 having nominal diameter equivalent to the diameter of plain wire having the same weight per foot as the deformed wire.  ASTM A496/A1064 specifies a maximum diameter of 0.628 in [16 mm] maximum.  Any bar supplied above that diameter shall have the same physical characteristics regarding deformations as required by ASTM A496/A1064.
